Nelson-Style Cedar Bench

I made what could be called a Nelson-style bench to use as a step next to our hot tub.

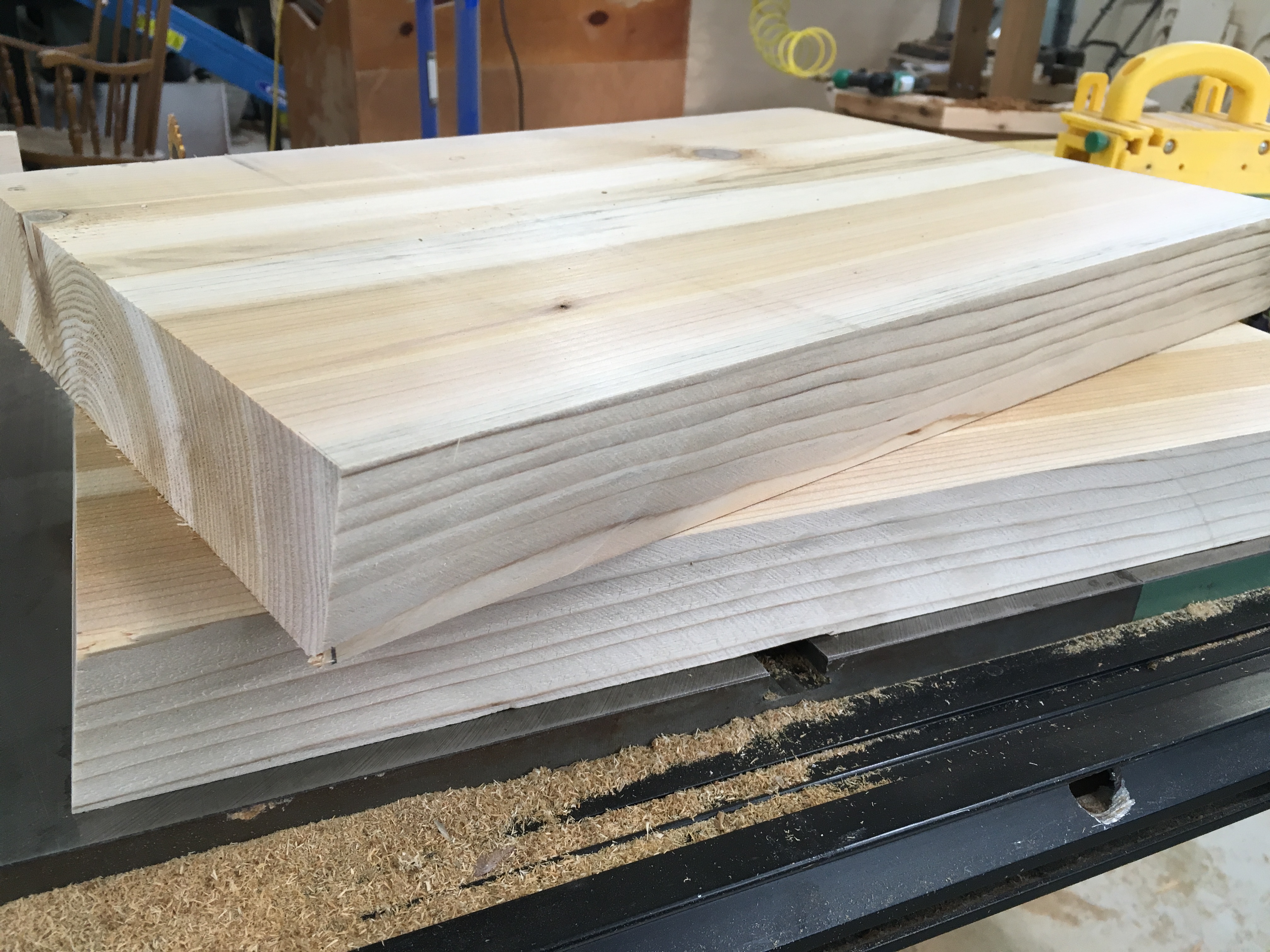

It’s about four feet long, 13″ tall, and 11″ deep. The legs are angled out at 10º, and the top is composed of five one-inch wide slats. All of the wood came from one of these cedar 2x12s.

First, I cut the two legs. They’re about thirteen inches long with both ends mitered at 80º.

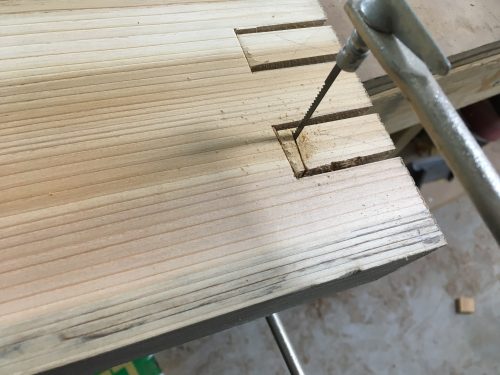

I cut the sides of each finger joint into the ends of the legs with the table saw, removed most of the inner material with a coping saw, and then cleaned it up with the table saw again.

I cut out five four-foot strips from the 2×12 and then planed them down slowly until they fit perfectly into each finger joint.  Here’s a photo of the dry-fit. (I also tapered the bottom of the end of each slat at 80º.)

I glued the slats into the legs and clamped them for an afternoon.

I cut a chamfer into the edges of the slats in the middle section so it’s easier on the butt (or feet, depending on how the bench/step is being used).

When the cedar-friendly varnish I ordered gets here, I’ll give it a couple of coats to preserve the wood’s color, but it’s otherwise finished and perfectly functional.
