Look at what I did in the bathroom!

My wife requested a cabinet to hang above the toilet in our downstairs bathroom, and she sent me a link to this Shanty 2 Chic design as an example of what she wanted. Usually, I would draw up my own plans, customizing them based on the materials I have and the space I’m filling. This time, I decided to just follow the S2C plans exactly since the size was just right for our bathroom.

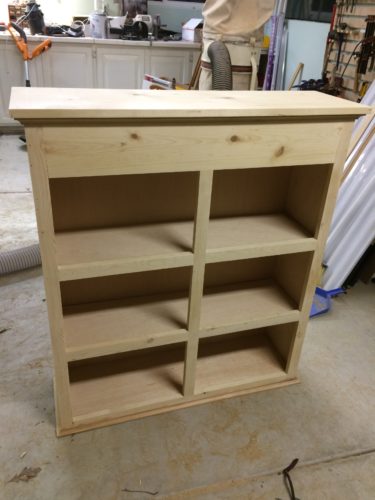

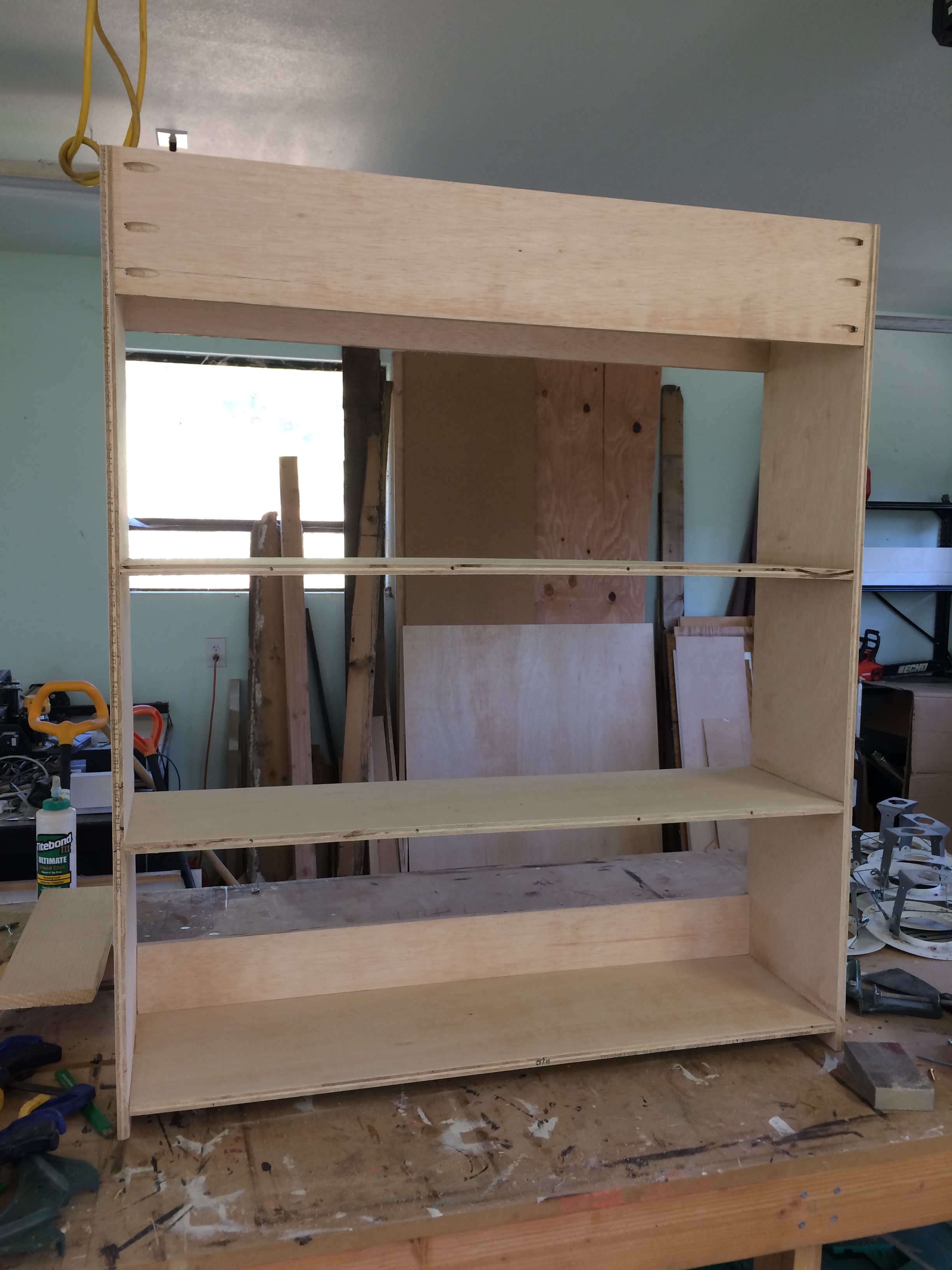

I don’t have a lot of build pictures, but apart from using half-inch plywood for the carcass instead of 1x dimensional lumber, my build looked the same as the Shanty 2 Chic tutorial.

All of the non-plywood wood is 3/4″ pine.

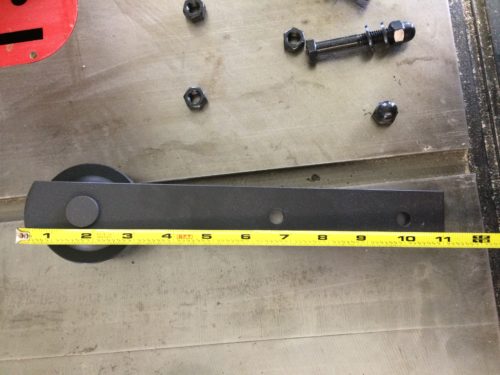

Instead of buying the same custom hardware kit that Shanty 2 Chic used ($125), I bought this set of barn door rollers on Amazon for $28.

The rollers didn’t come with a rail to roll on, so I made my own by resawing a 1×2 down to a little less than 3/8″ wide and painting it with an oil-rubbed bronze paint that matched the rollers’ finish pretty closely.

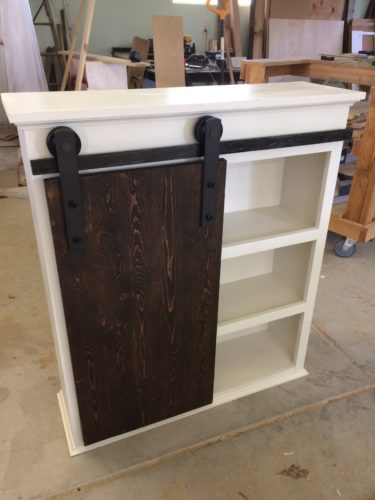

The door is five 1x4s joined together with biscuits and glue. The stain is Varethane’s Kona, and the paint is Glidden’s Creamy, the same scheme as our kitchen table and garbage cabinet.

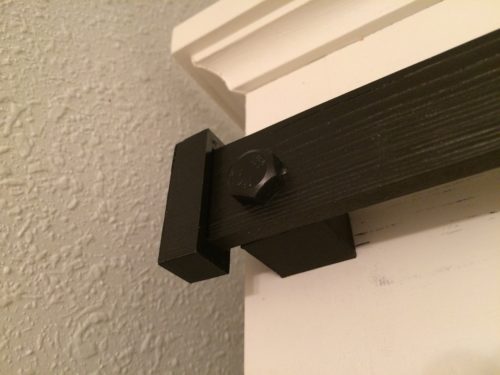

To prevent the rollers from slipping off the end of the rail, I 3D-printed some endcaps for the rail:

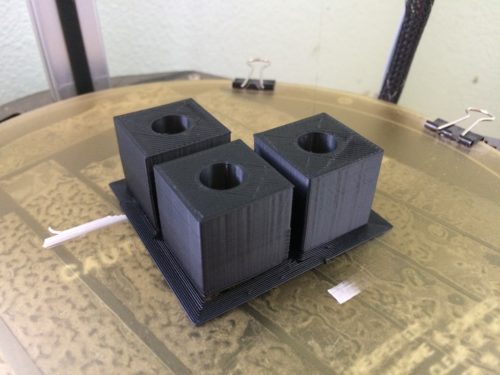

You can also see one of the spacers I printed to hold the rail away from the cabinet since the roller needs about an inch of clearance from the face of the cabinet. The spacers were just cubes with a void for the bolt to pass through.

I could have cut them out of wood, but it was handy to be able to print the exact right size without any fuss.

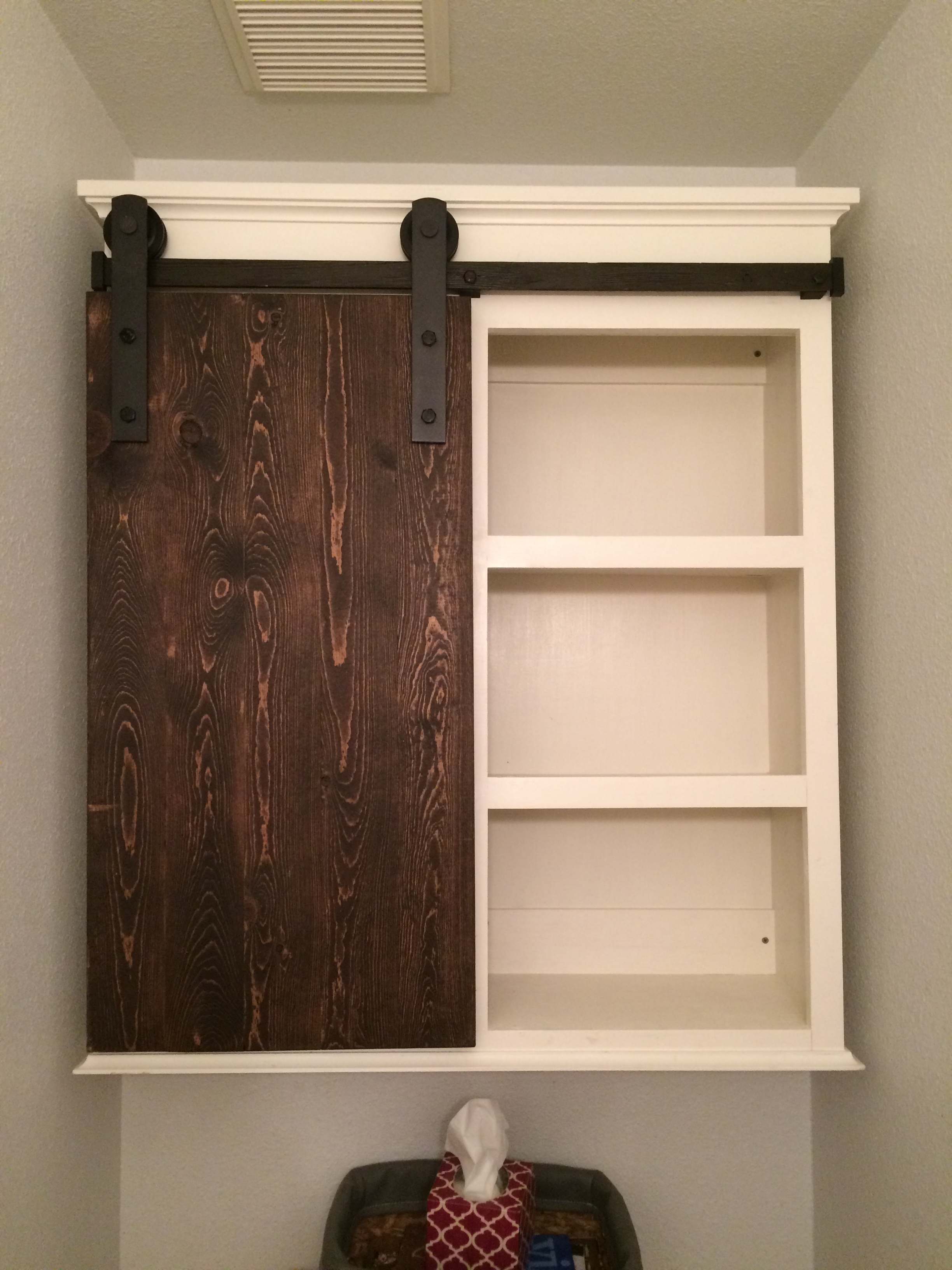

After taking the bathroom door off so I could get the cabinet inside, I hung it above the toilet with care, in hopes that extra toilet paper rolls soon would be there.
