Artisanal CNC-Carved Growth Chart

My kids have been requesting a growth chart, so I made one with my X-Carve. I used red oak left over from when I built our dining room table.

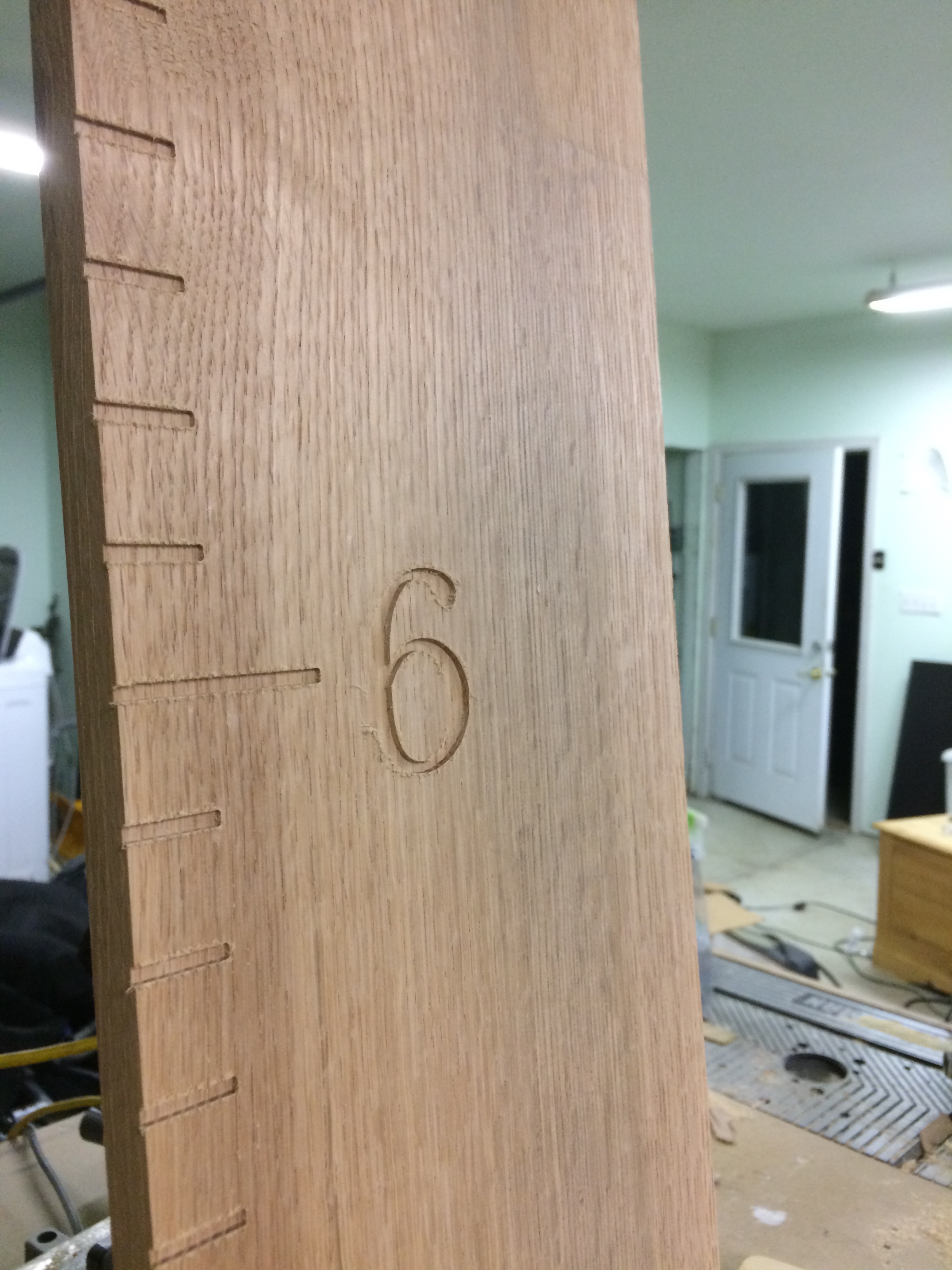

It took three separate carves to get all six feet of numbers and inch delimiters carved since the X-Carve’s workable area is only about 30 inches long. The trickiest part was ensuring that the board was positioned exactly right for each new carve so that all of the measurement marks would remain accurate.

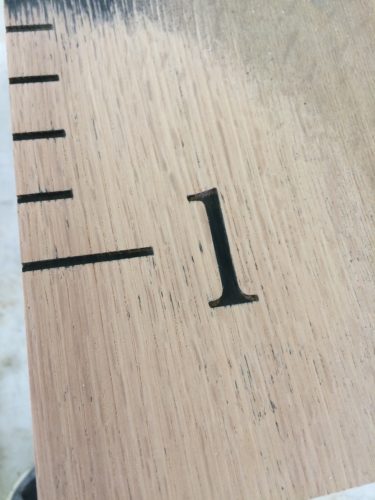

I spray-painted and then sanded the front of the board, leaving the recessed numbers and inch markers a glossy black.

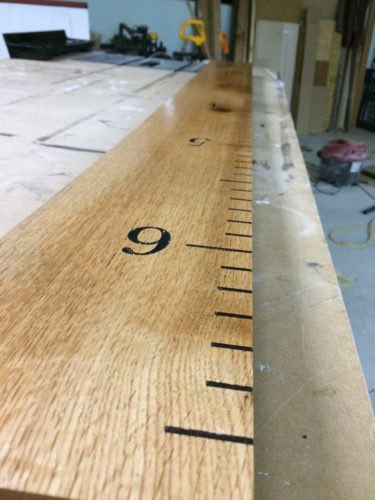

For a finish, I abstained from stain but applied a couple coats of polyurethane so that any pencil or Sharpie markings we make will still be easily readable.

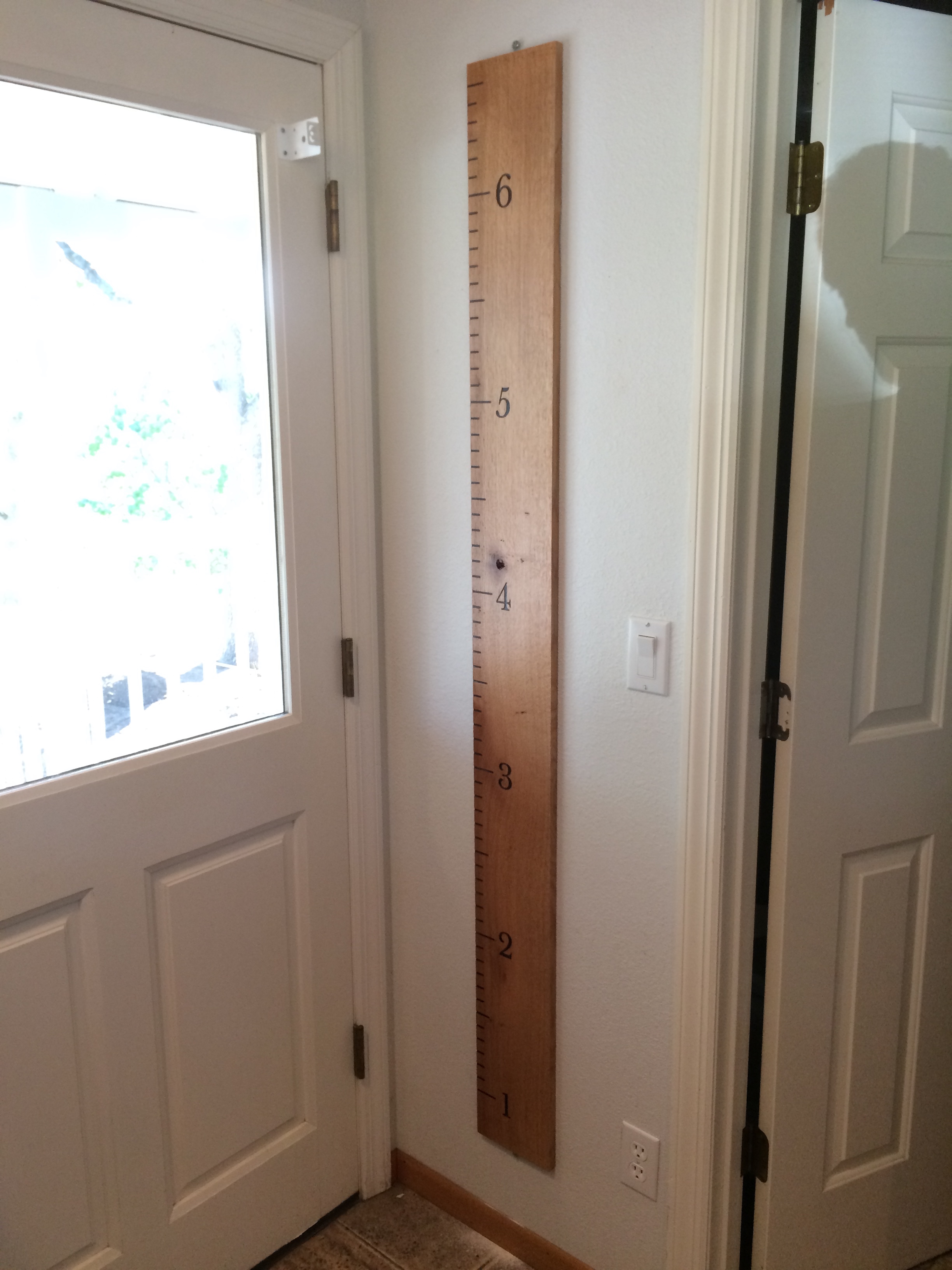

I put an eye hook in each end of the board and then drilled a screw through them to attach the chart to the wall. This seemed like the simplest way to secure the board to the wall but also have very precise control over its position. This ensured that the height markings are accurate, since the chart doesn’t start at 0’0″ because the baseboard moulding would interfere.

I’m happy to report that I am still the same height as I was in high school.

If you want to make one of these growth charts, my Easel project is available here.
