I Built a Treehouse

After we moved into our new house last month, my kids started asking for a treehouse.  I told them I’d need to see some plans before I could get started, and the next morning, I found this on my workbench:

img_6416

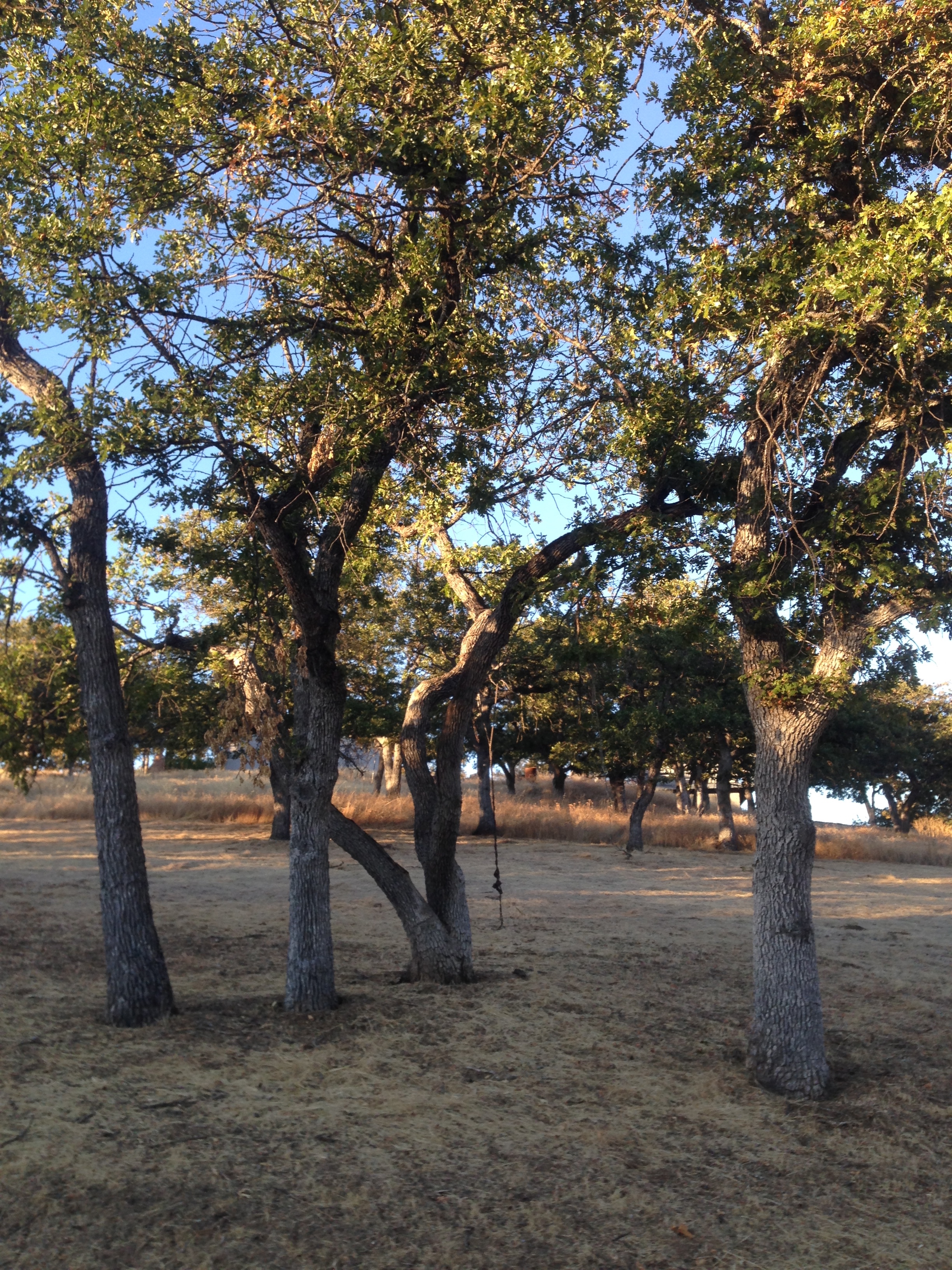

Fair enough.  The previous owners said that there had previously been a tree fort built in these trees, and some of the detritus was still visible:

img_6409

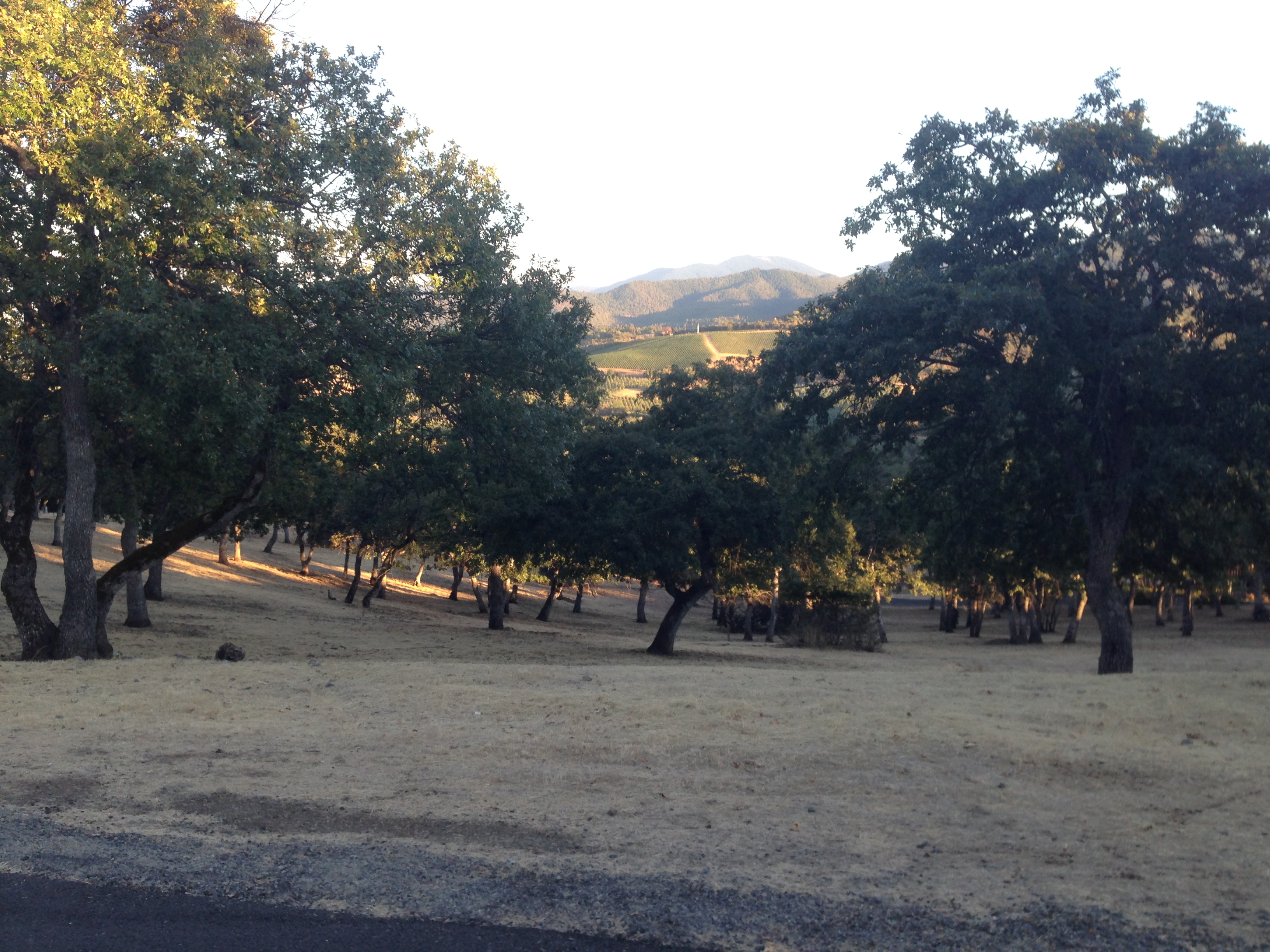

These trees didn’t look so hardy, but there is no shortage of other trees to choose from on our property.

img_6407

img_6139

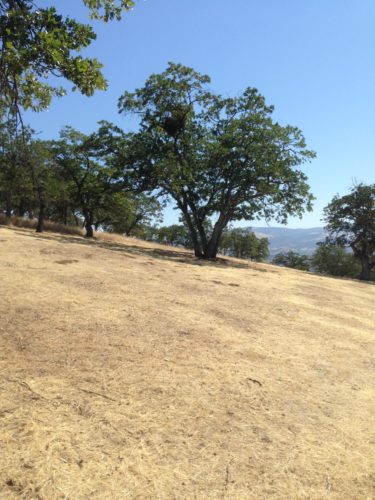

We settled on this one. V-shaped, about 200 feet from the house, and with good views in all directions.

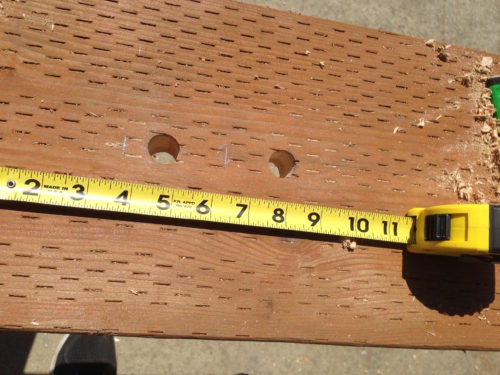

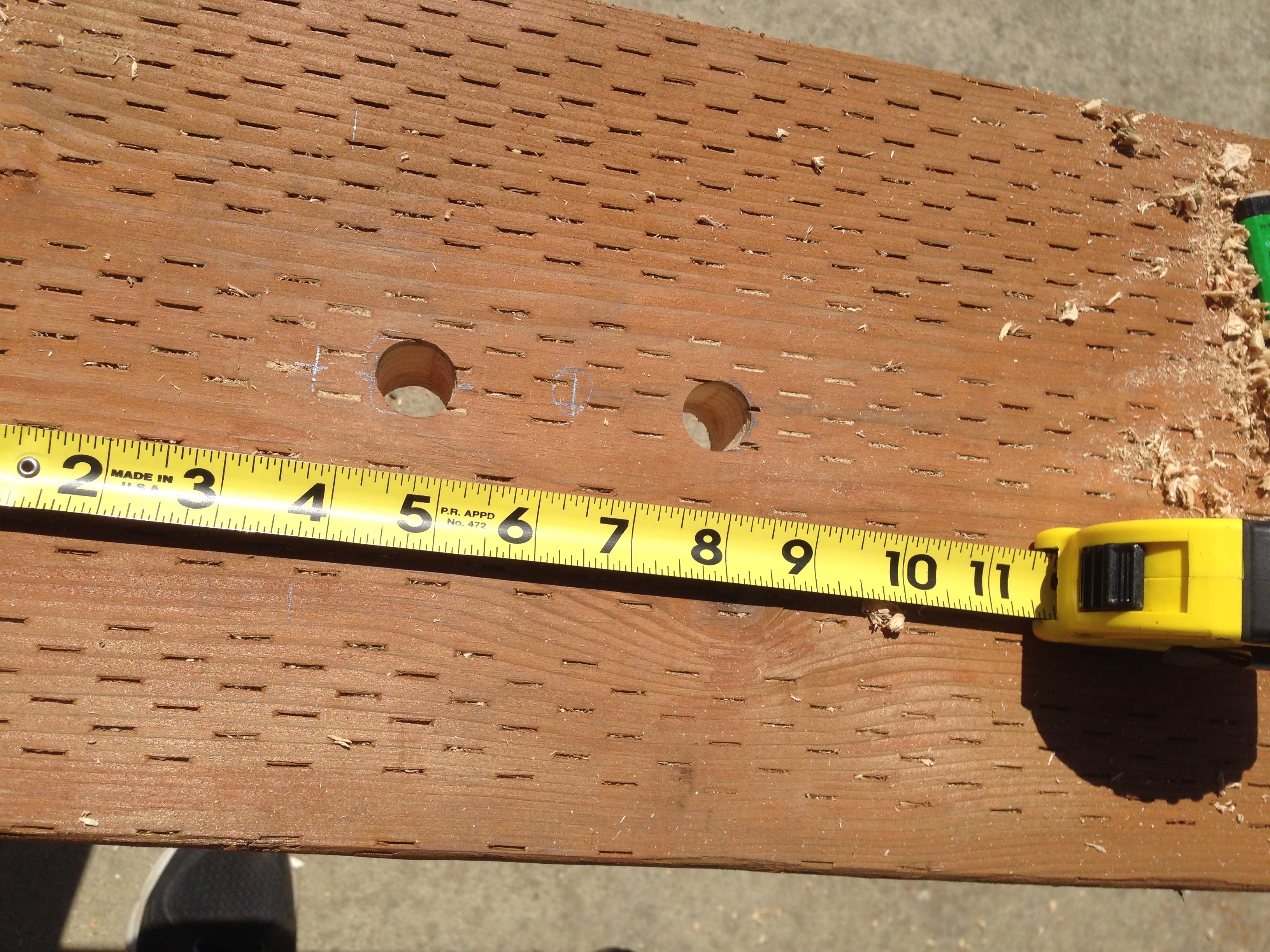

The most important thing to consider when building a treehouse is that the tree will move, especially in a strong wind.   To account for this, the main supports should have slots where the bolts attach the beams to the tree so that a swaying tree doesn’t tear apart the entire structure.  (You can also use special hardware like Garnier Limbs or treehouse attachment bolts.) I used 2×12 treated lumber and started by drilling holes about 5″ apart.

img_6141

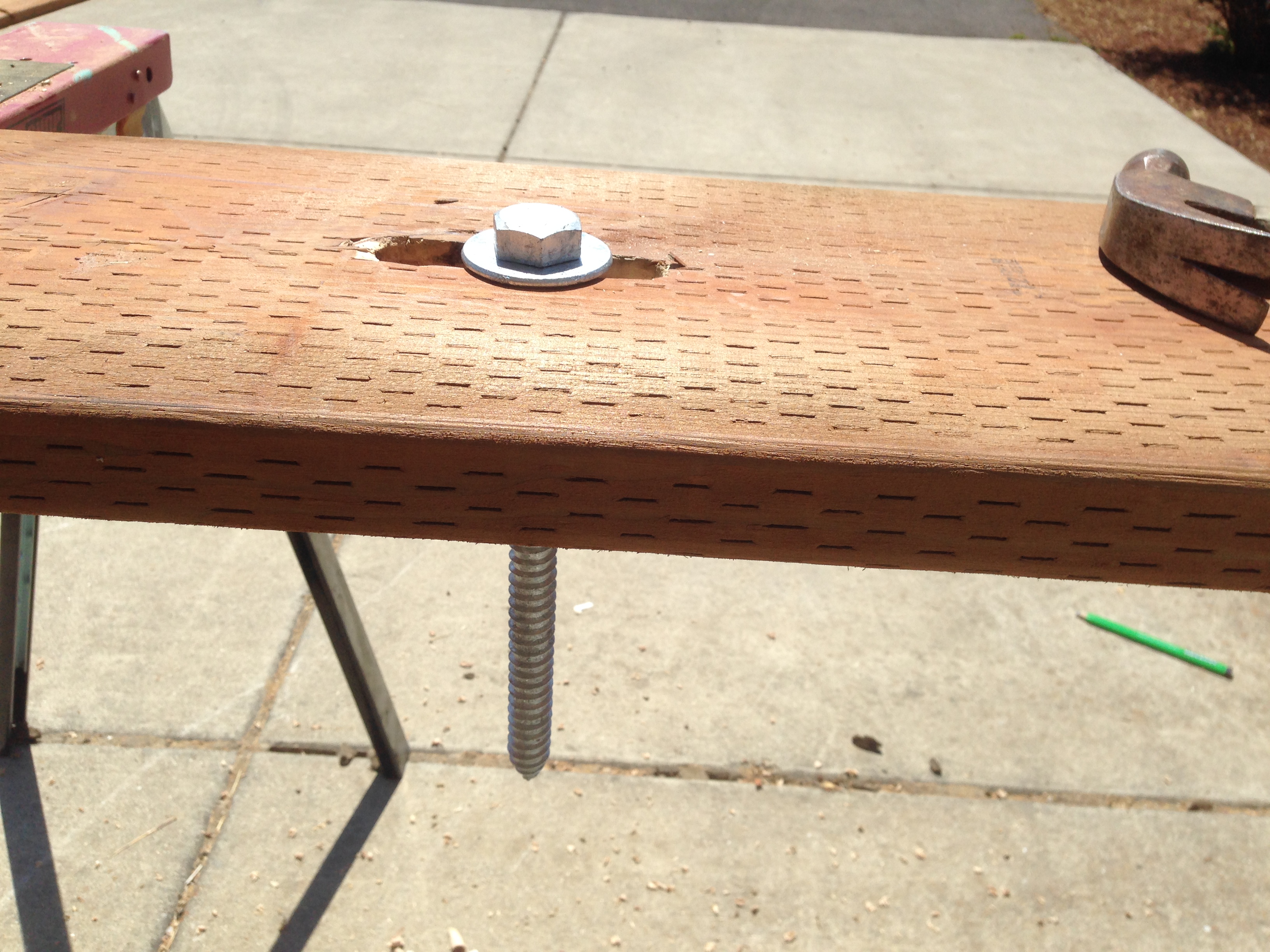

Then I removed the wood between the holes to create a slot for the bolt to slide in.

img_6143

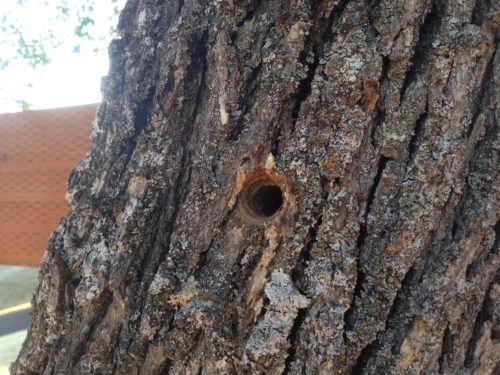

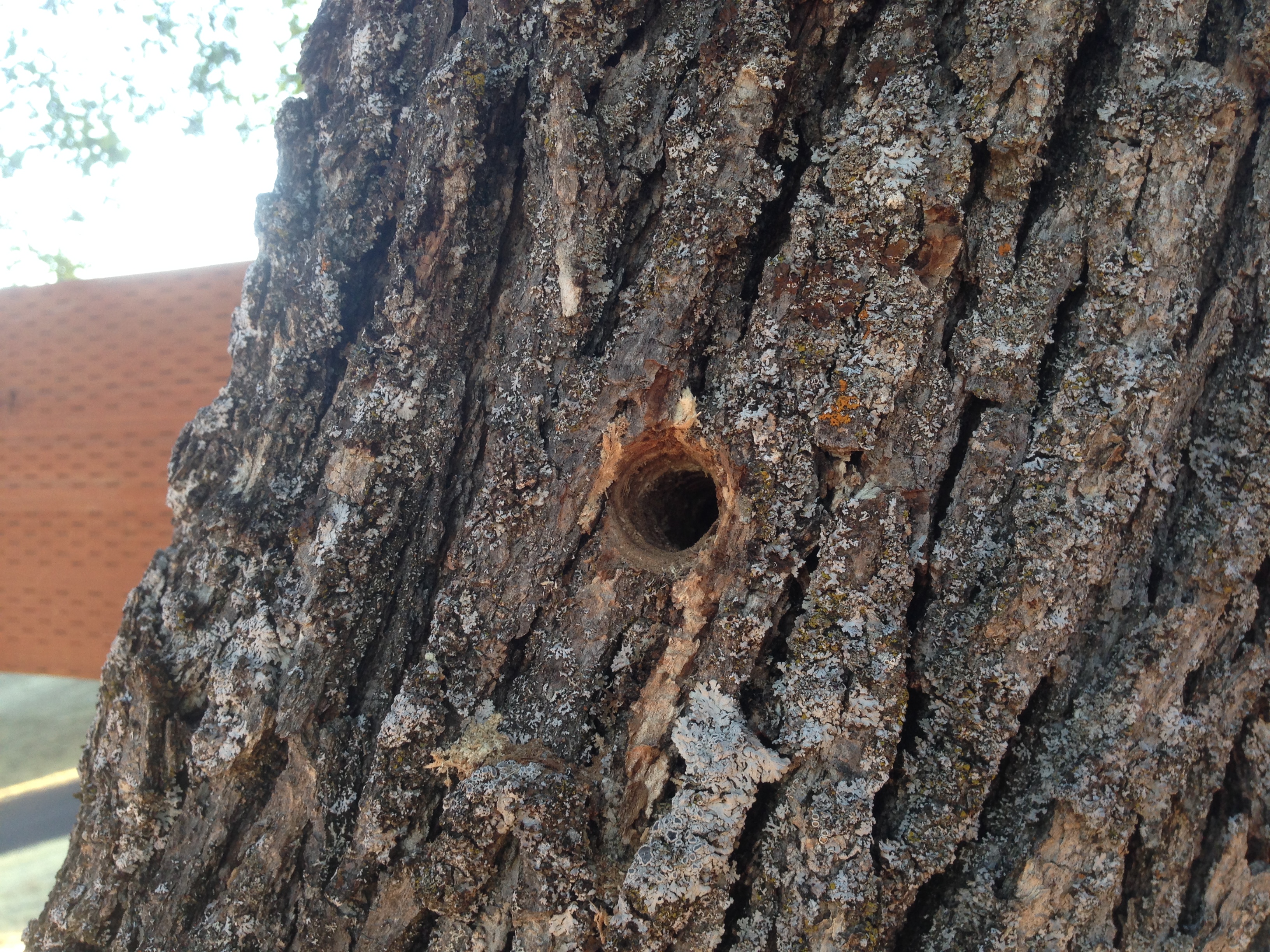

The bolt holes need to be pre-drilled, otherwise you’ll never get them in all the way. I drilled 9/16″ holes for the 3/4″ bolts.

img_6188

As long as you only put a few holes into the tree, it should be able to survive. It’s actually worse to put a bunch of small holes in a tree by using nails or screws than a few big holes for bolts, since many small holes may cause the tree to compartment that entire area, causing the wood between the small holes to rot.

img_6183

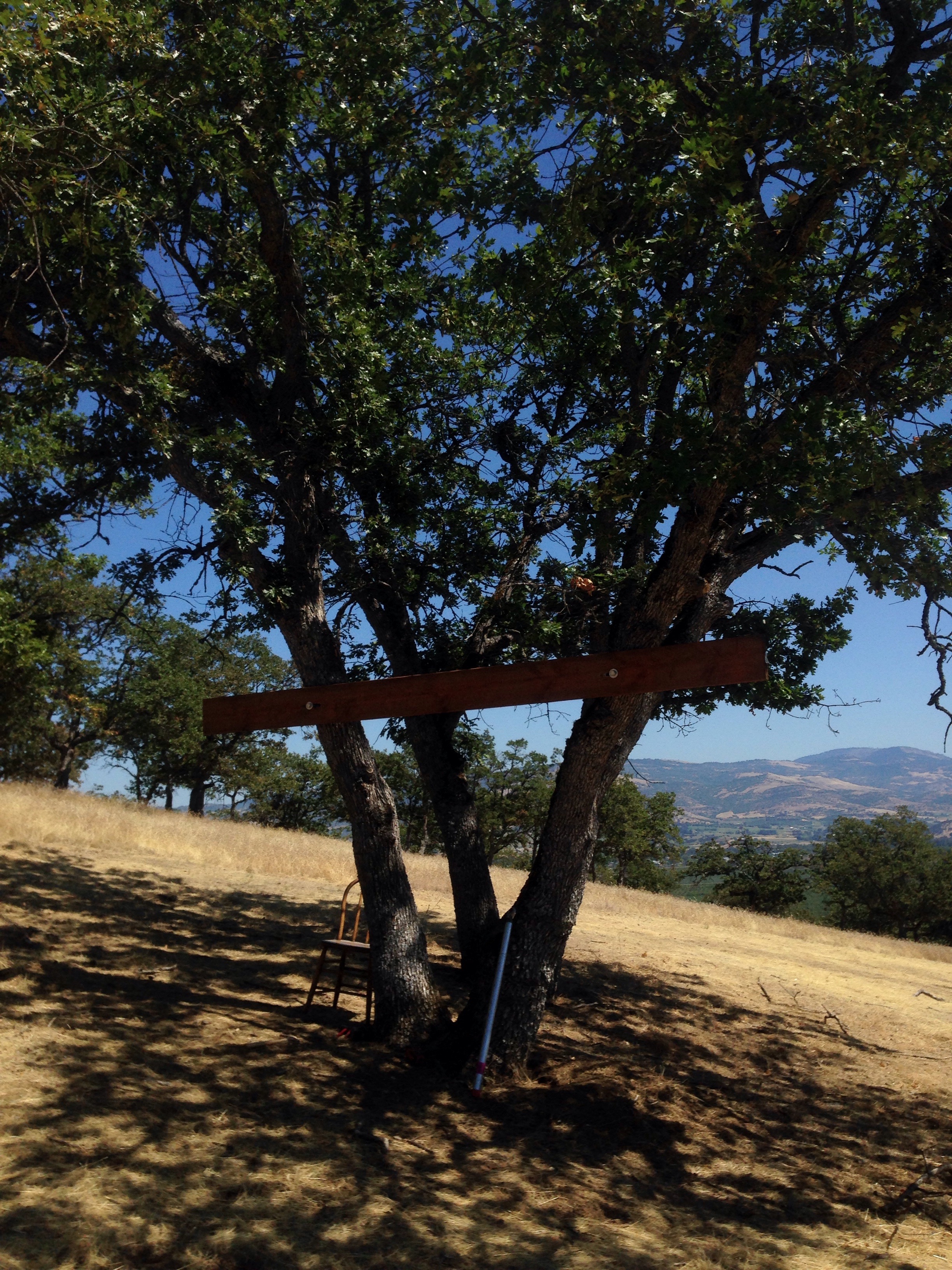

Here’s the first beam attached with two of the 10″ long 3/4″ bolts. It’s about 5′ off the ground on the left side, 8′ off the ground on the right.

img_6195

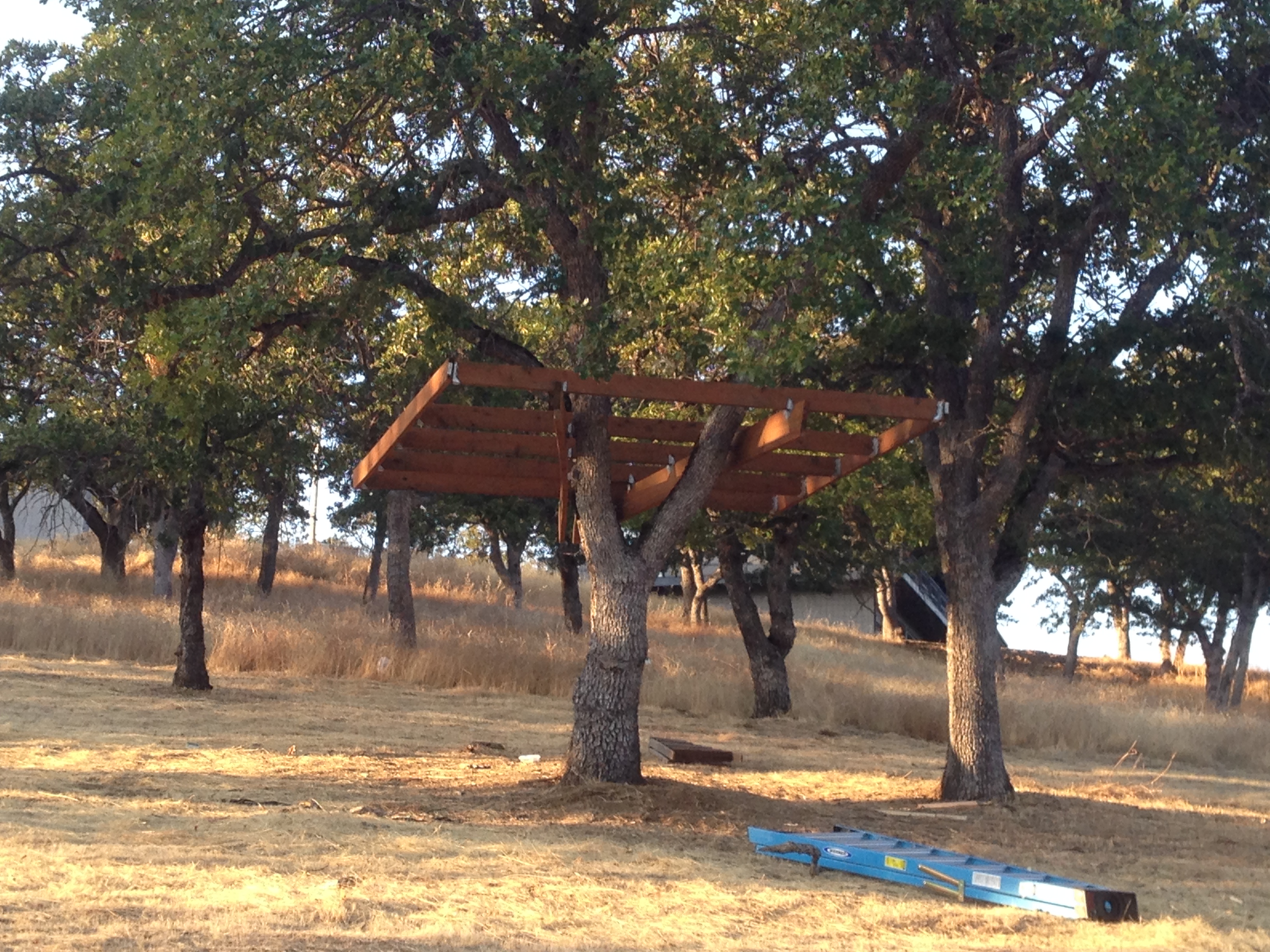

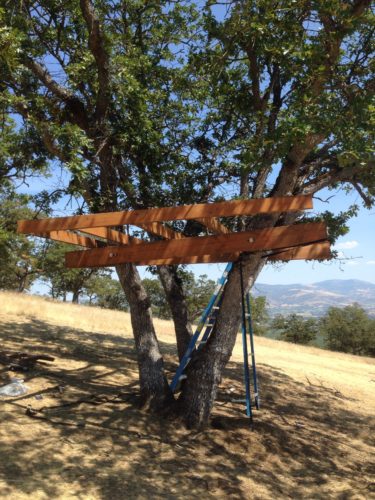

I put up the other beam and attached the joists above them to support the treehouse floor.  Here’s a side-view that shows better the shape of the tree and the main support V.

img_6202

The ladder on the ground means “Kids, don’t try and climb up there yet.”

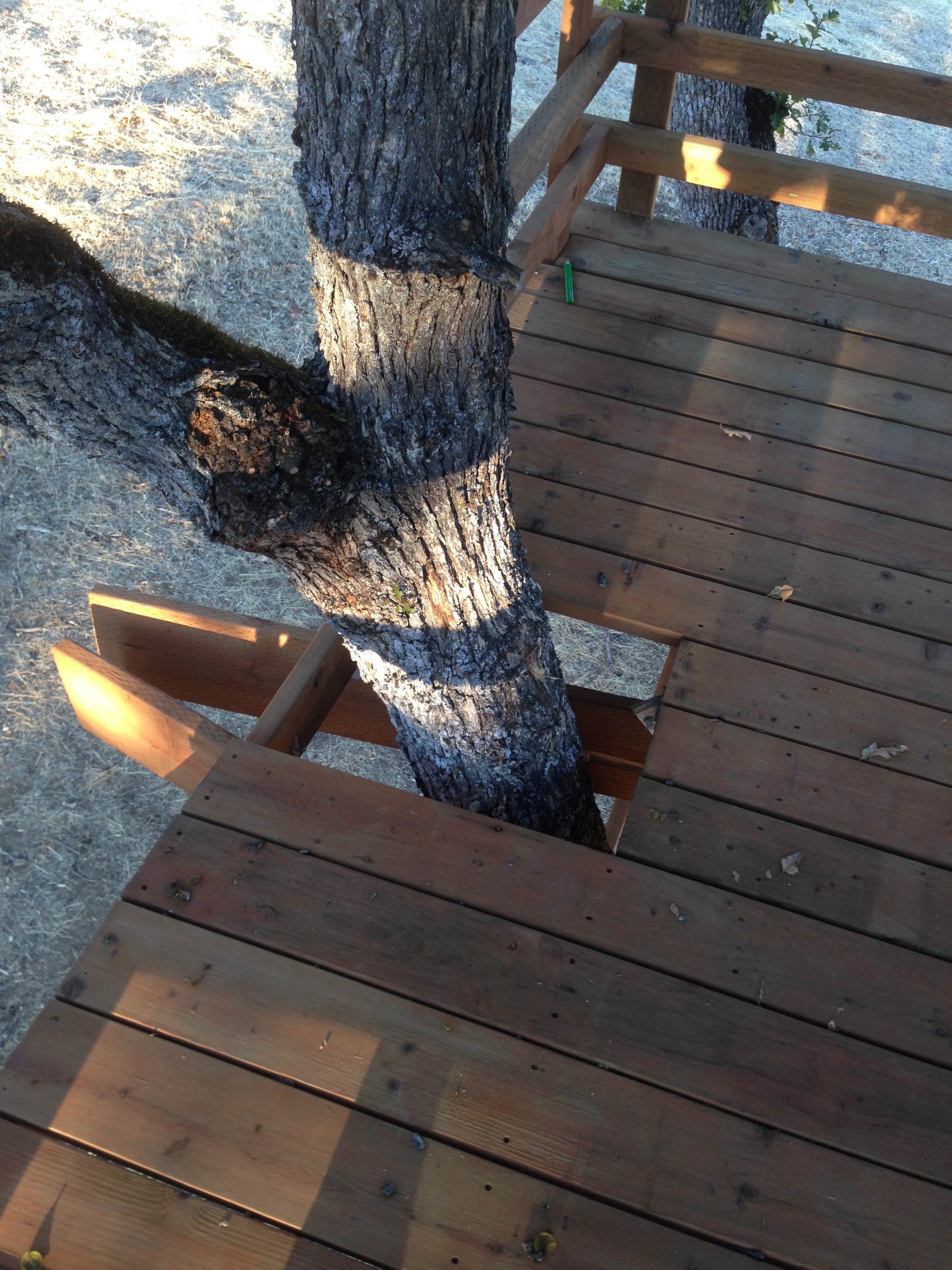

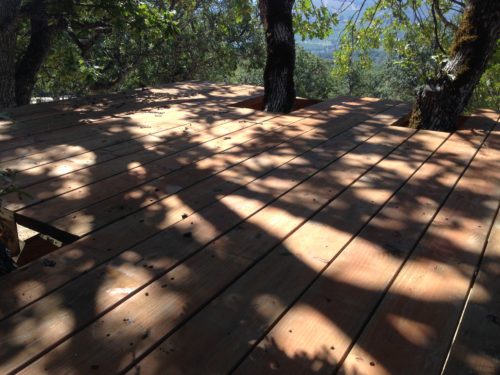

At this point, I was able to put in the floor boards. There’s nothing complicated about this; just leave space around the trunks so that the tree has room to grow.

img_6233

img_6403

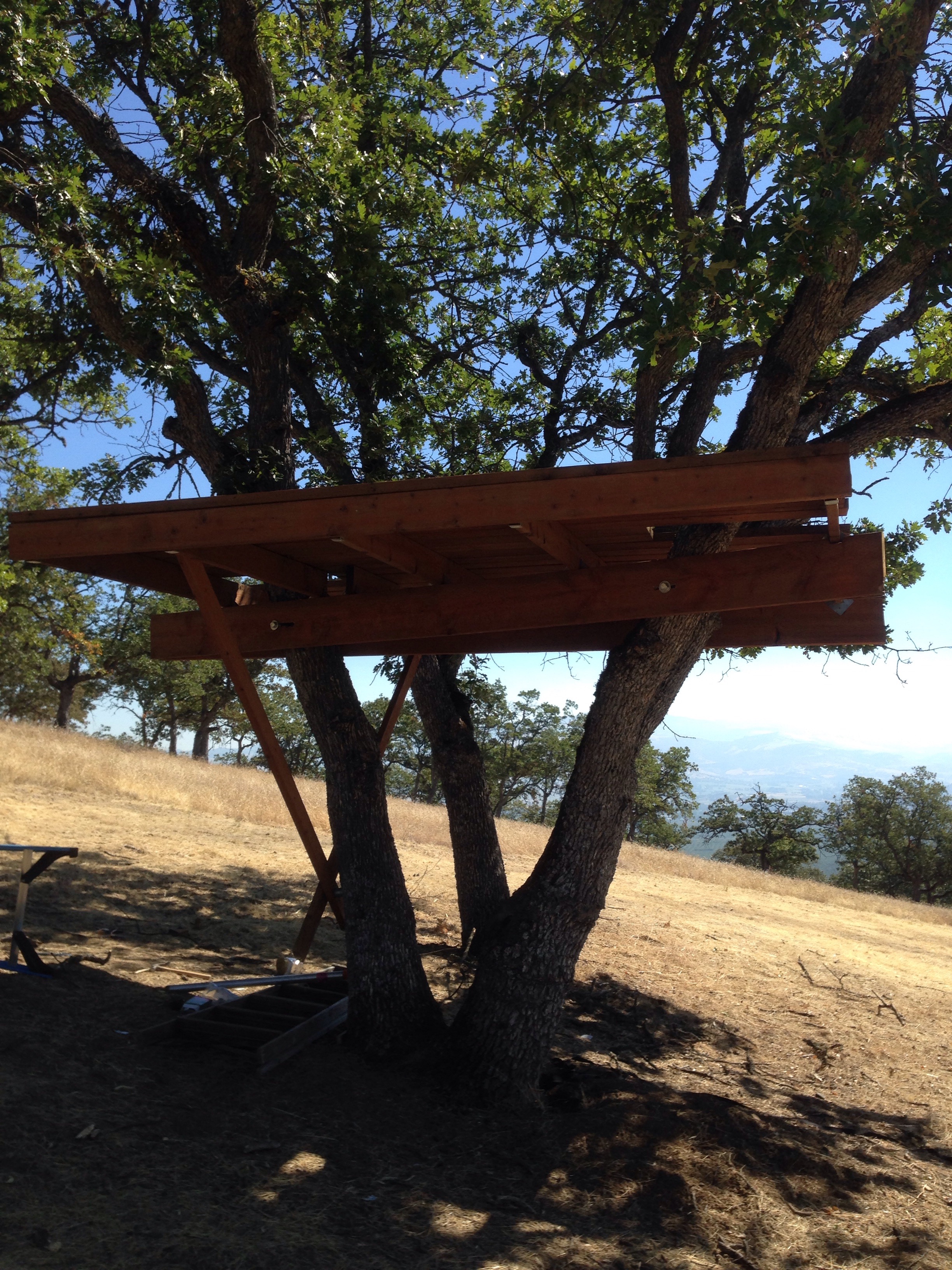

With this kind of support system, the platform will be wobbly without additional support, so I added the first of two corner supports and bolted them to the trunk near the ground.

img_6235

img_6259

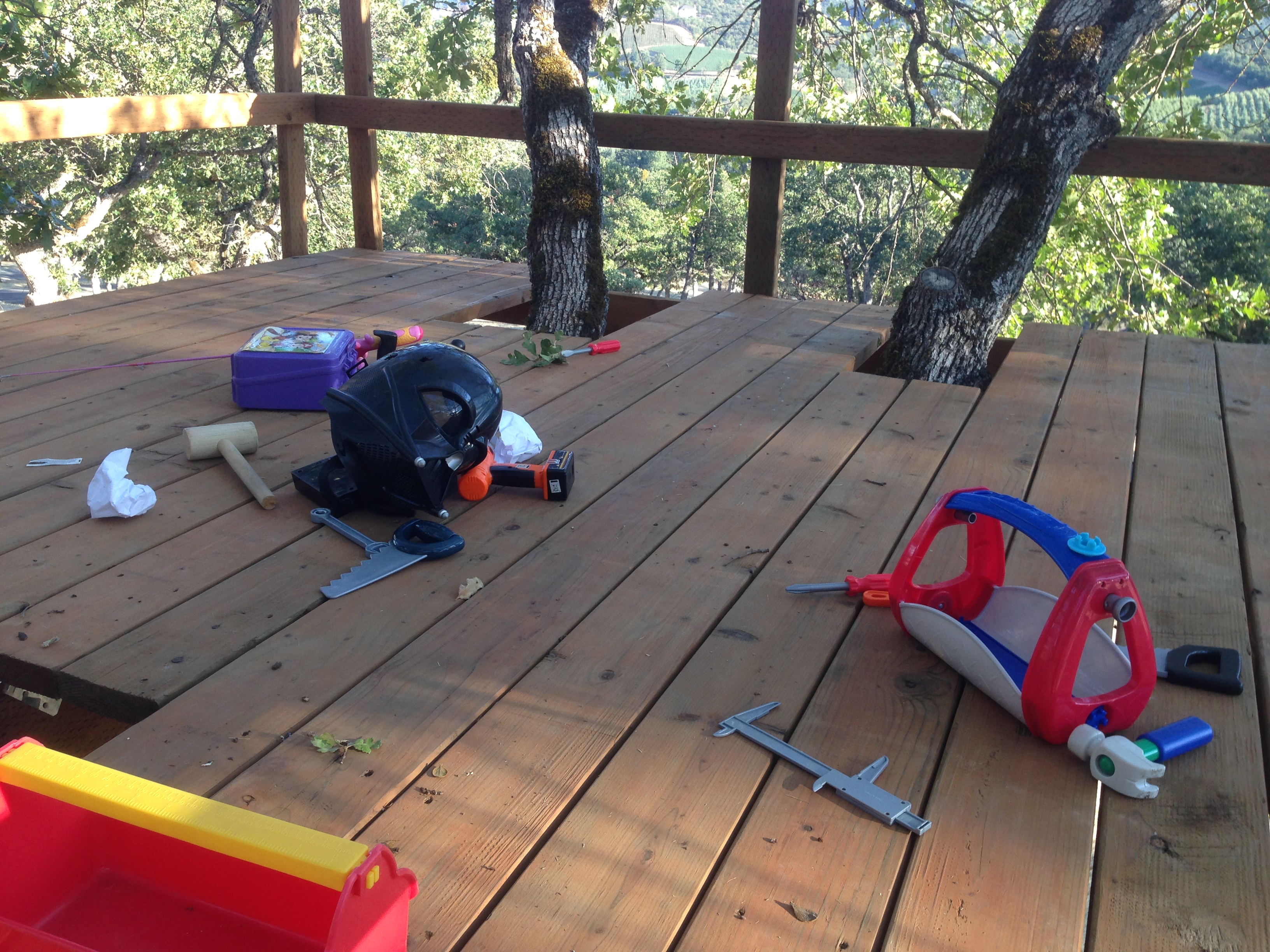

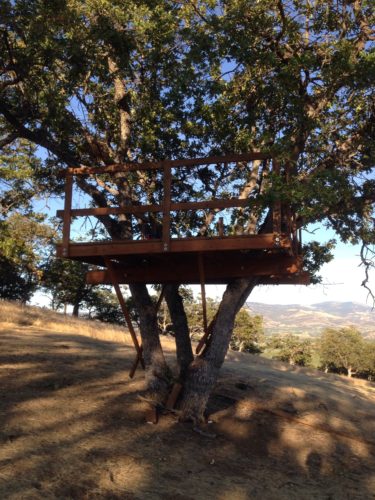

The kids brought up some tools to help out.

img_6260

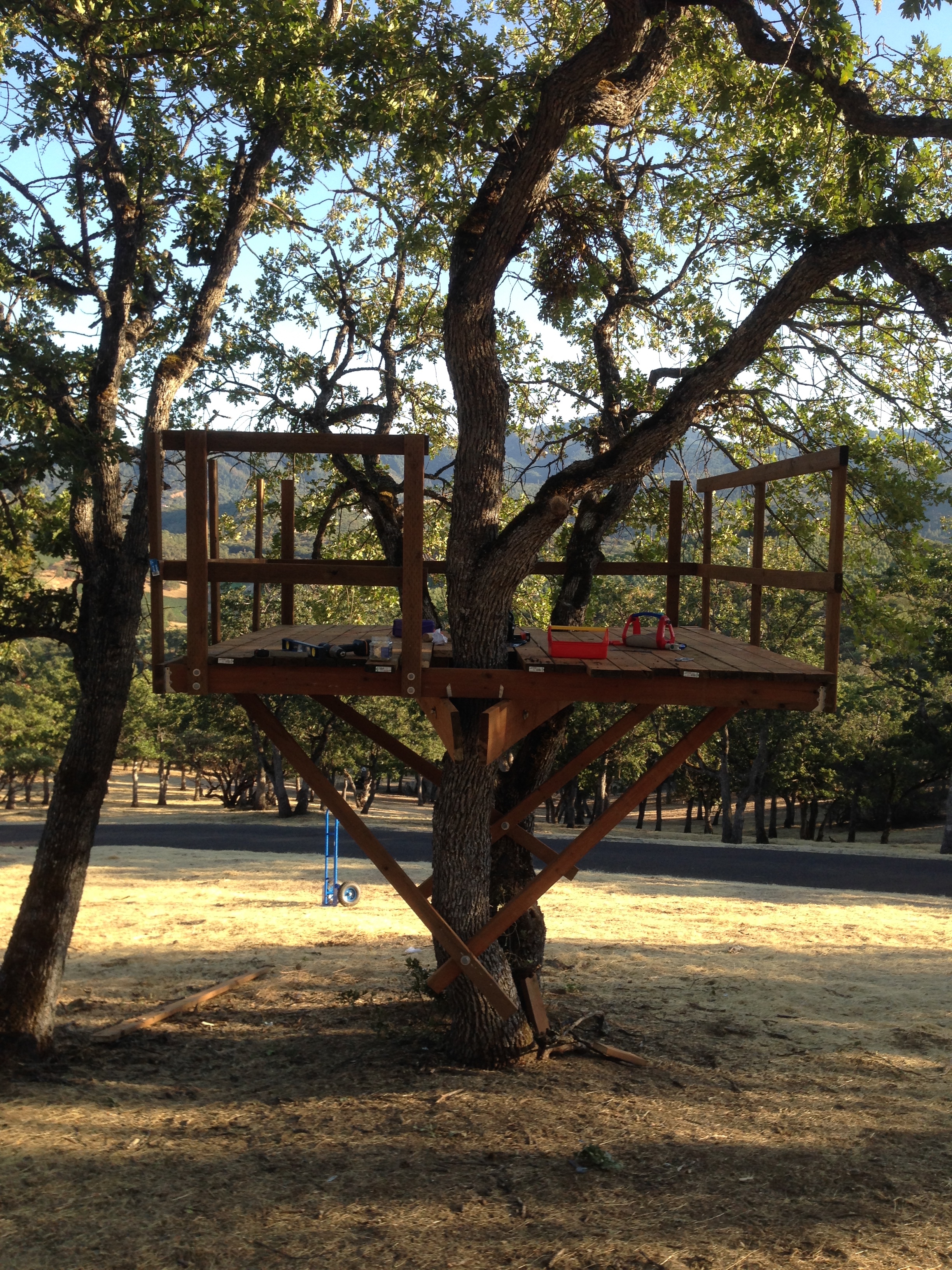

I started on the railing and added a second vertical V support.

img_6263

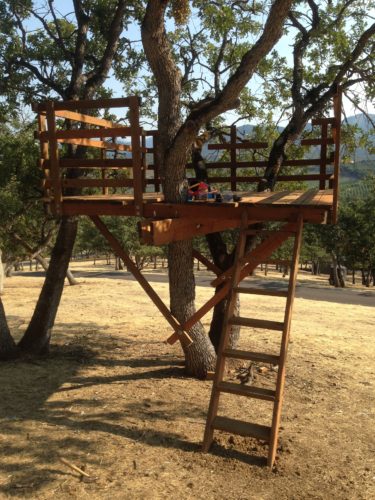

A view from behind the treehouse, looking down the hill.

img_6272

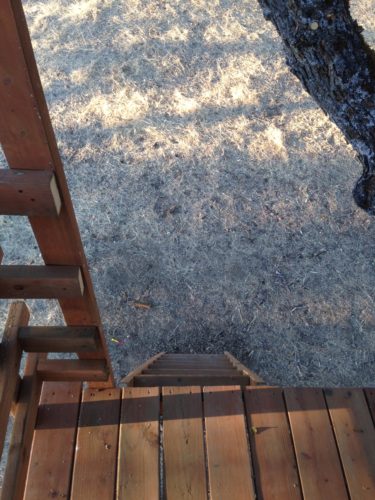

I added a ladder, built out of 2x6s. It’s steeper than a stairway but shallower than a vertical ladder.

img_6404

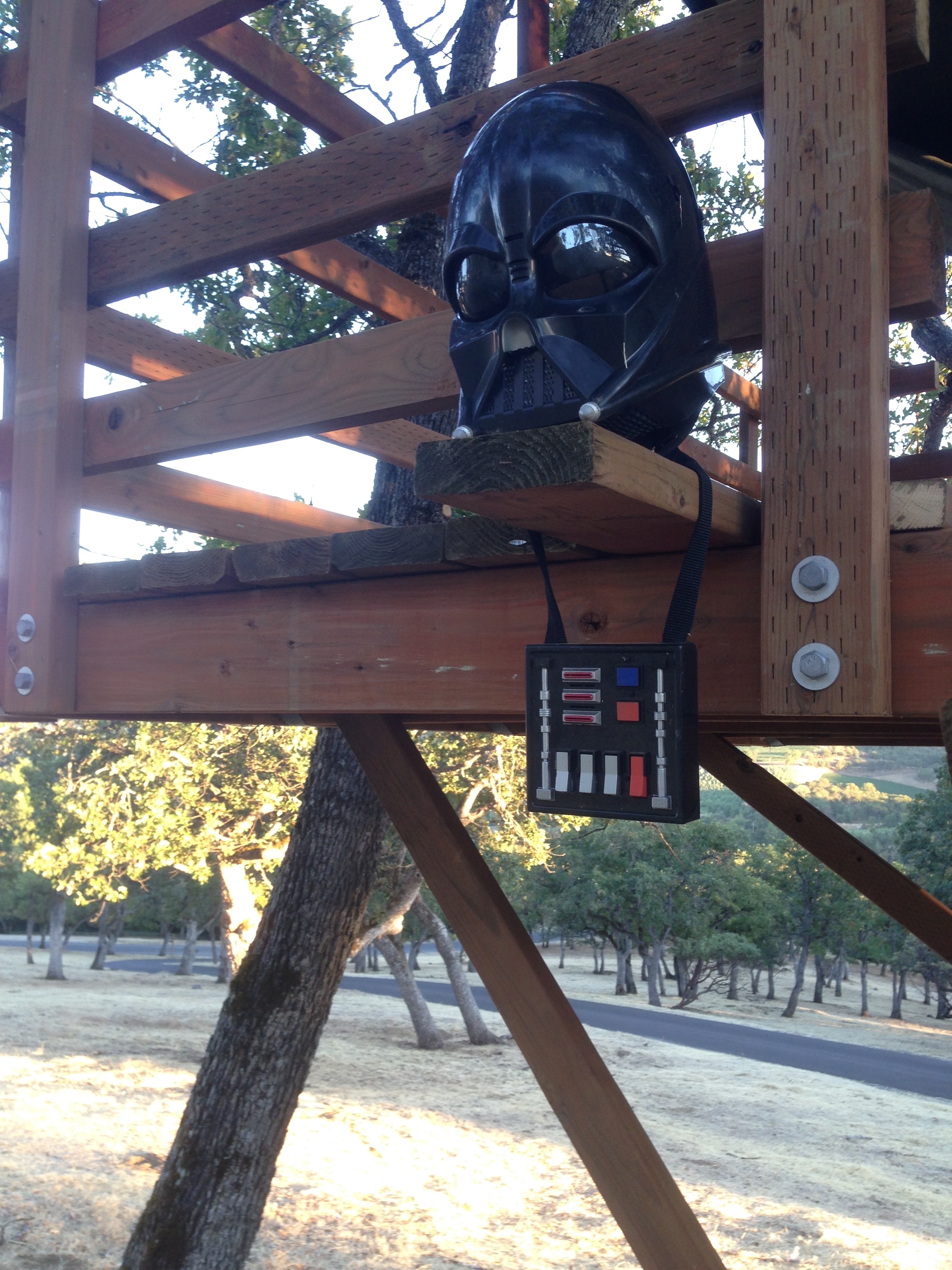

I trimmed off most of the floorboards, but the kids asked me to leave this one long.

img_6410

I don’t know if their original intention was to mount the disembodied head of Vader on it, but that’s what they did.

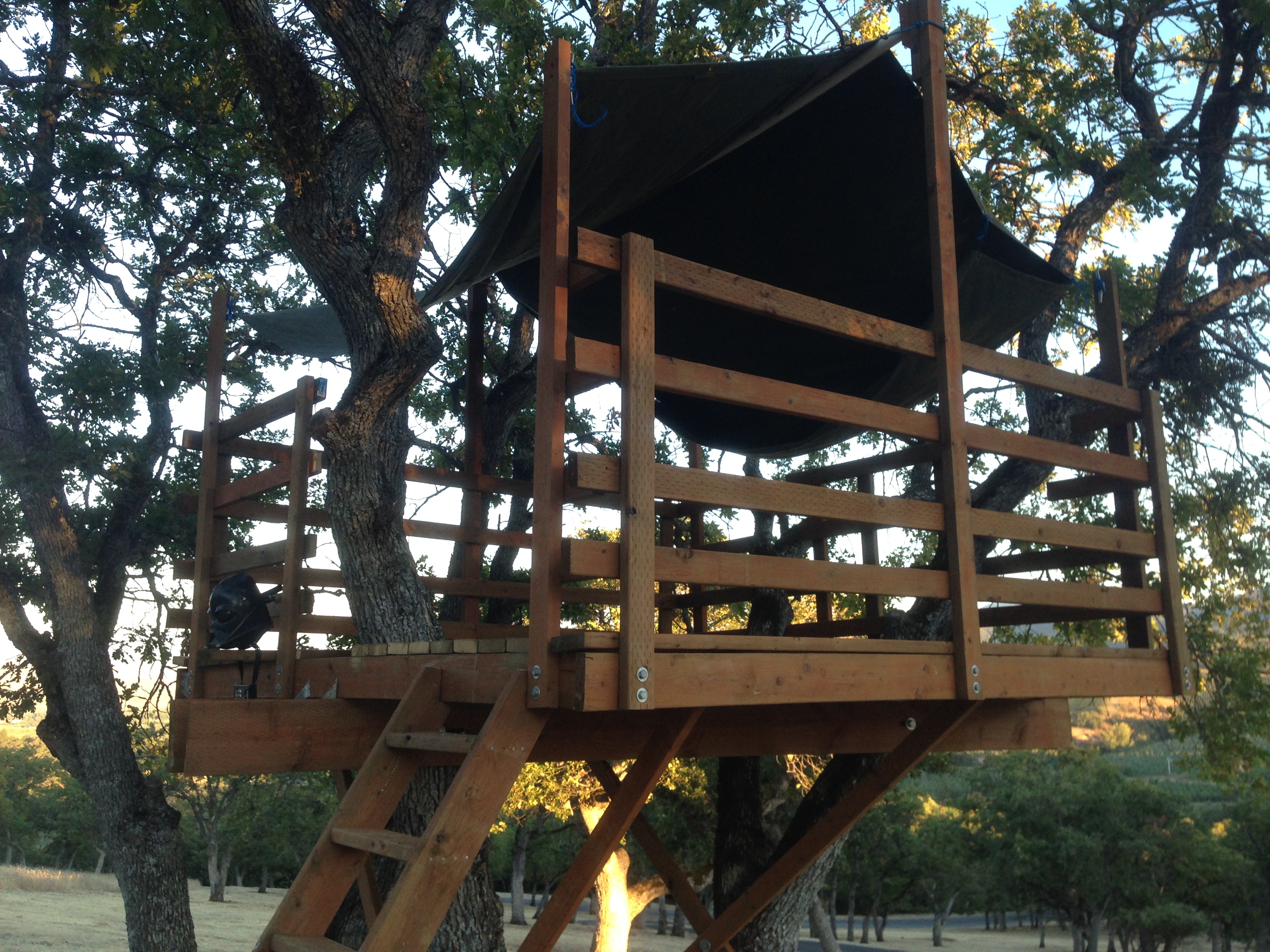

To avoid too much weight and too much work, I went with a canopy roof. If I had planned ahead, I wouldn’t have had to replace the railing posts on both sides with taller ones to support the roof, but I did not. I was able to reuse the shorter posts anyway, so the only thing I lost was a bunch of time and energy.

img_6420

I used a big PVC pipe as the peak of the roof, and I think that was probably dumb. I wanted to avoid using something that would wear out the tarp if it rubbed against it, but a sanded 2×4 probably would have been fine, and stronger too. Oh well.

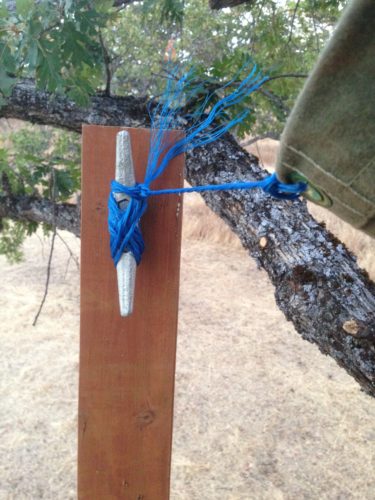

The canopy is tied down using horn cleats. This worked well, but I should have planned their spacing a little better to get the roof as taut as possible.

img_6378

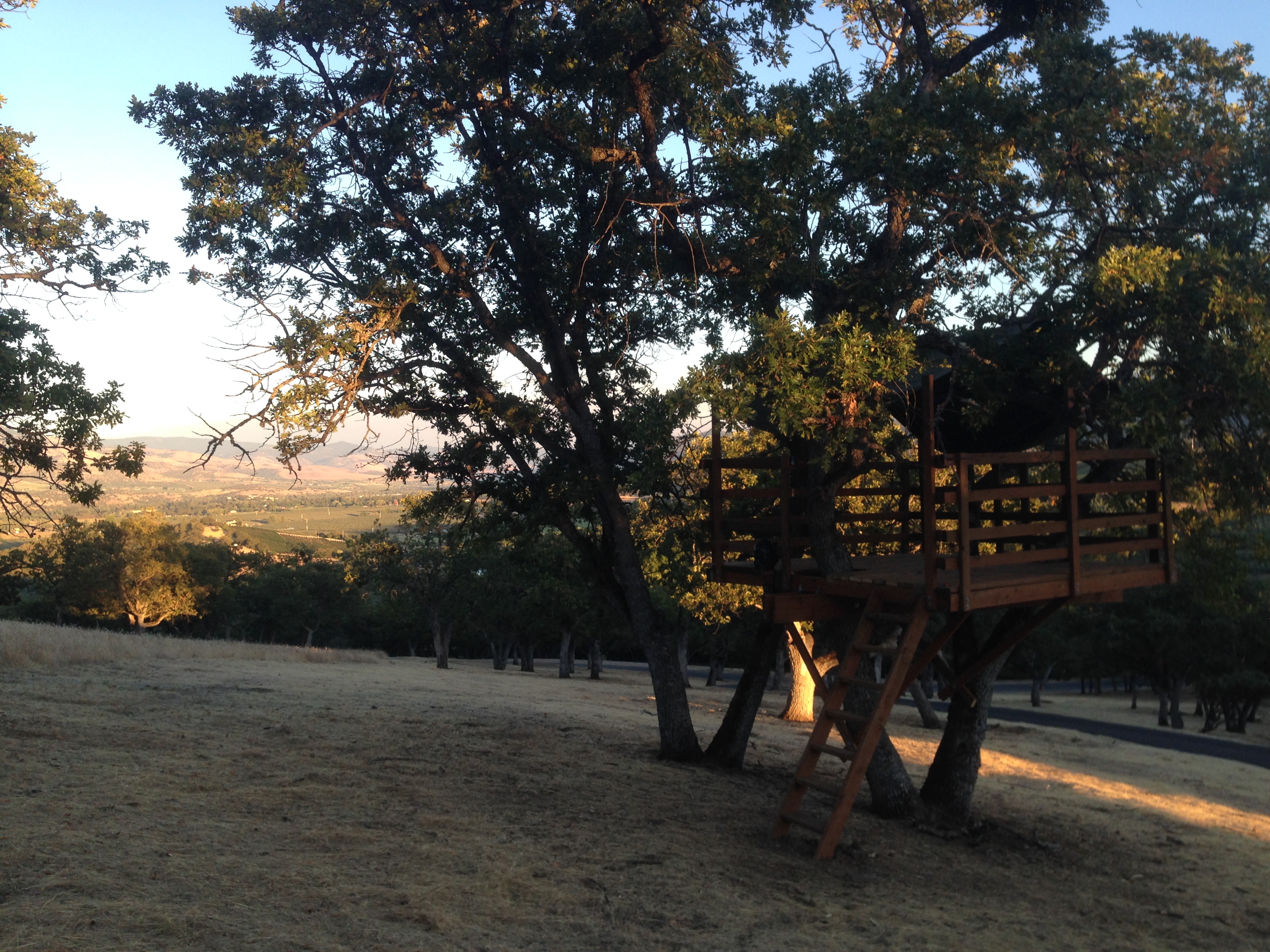

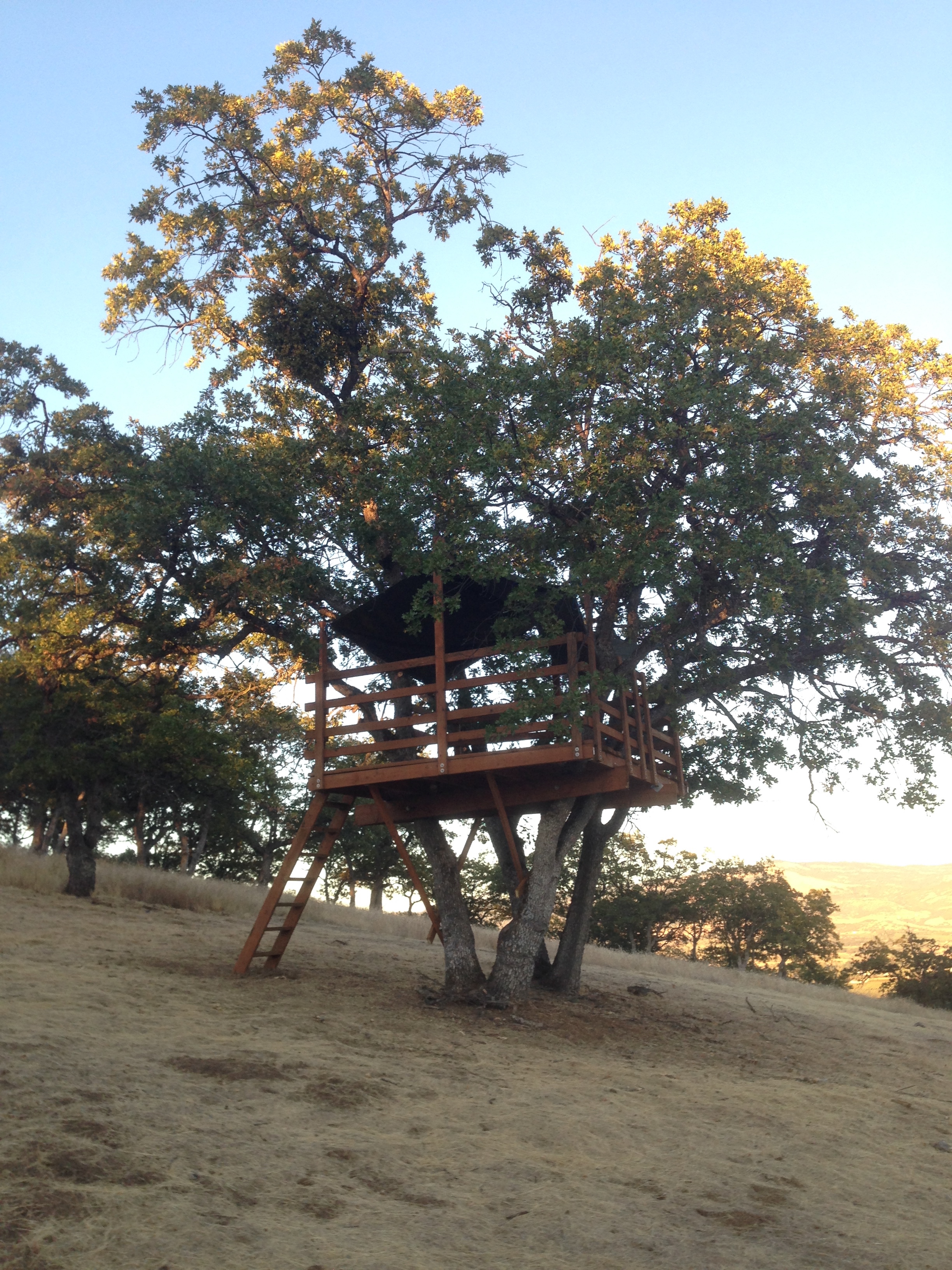

Time for glamour shots!

img_6423

img_6425

img_6418

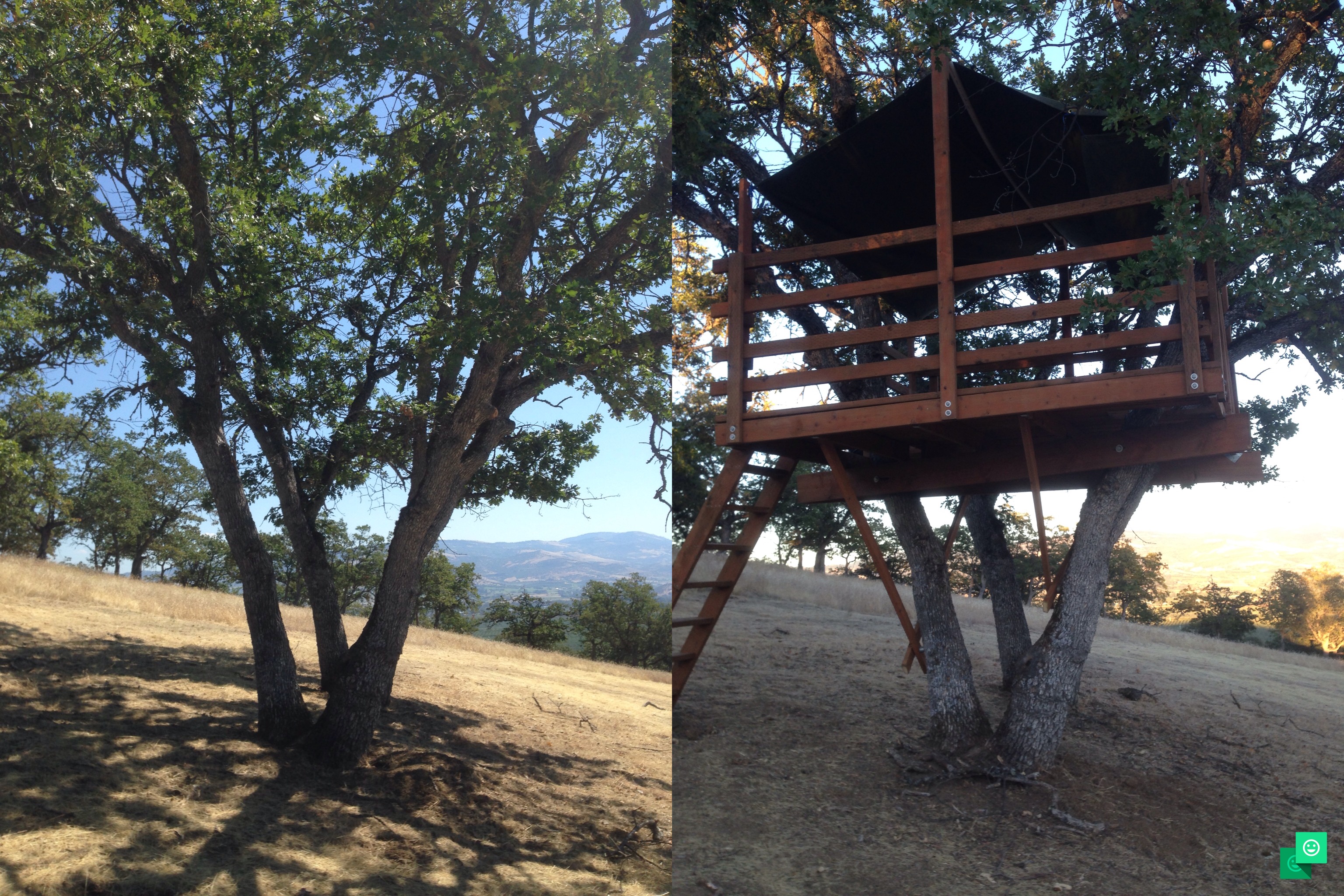

And here’s a before-and-after shot, taken with Reenact, of course.
